MELIPC MI3000 is an industrial computer with integrated display for shop-floor data visualization, edge computing and device control. Official material lists the MI3315G-W and MI3321G-W configurations.
Specifications
| Controller type | IPC |
|---|---|
| CPU model | Intel Core i3-6100U, 2.30 GHz, dual core |
| Main memory | 8 GB |
| Internal storage | 64 GB |
| Product models | MI3315G-W (15-inch) / MI3321G-W (21.5-inch) |
| Operating system | Windows 10 IoT Enterprise 2021 LTSC, 64-bit |
| Operating temperature | 0 to 55 °C |
| Dimensions (H × W × D) | MI3315G-W: 307.3 × 383.2 × 86 mm; MI3321G-W: 349.8 × 558.4 × 88.8 mm |
| Weight | MI3315G-W: 7.0 kg; MI3321G-W: 9.8 kg |
| Safety / radio certifications | CE, UL, cUL, KC, BSMI, CCC, FCC |

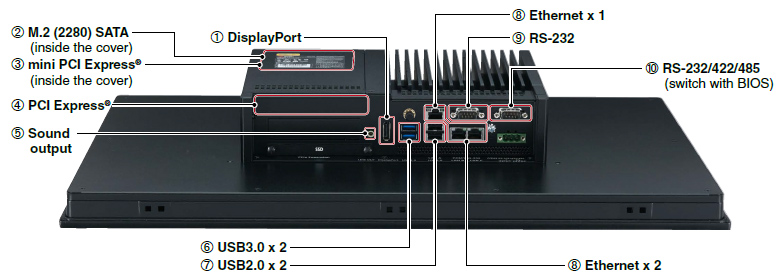

| Expansion interfaces | DisplayPort 1; Ethernet 3 ports; RS-232 2 channels; RS-422 1 and RS-485 1 (shared configurable serial channels); USB 3.0 × 2; USB 2.0 × 2; M.2 SATA; PCI Express x1; mini PCI Express × 2; audio line-out |
| Technical extension | Integrated 15-inch XGA or 21.5-inch Full HD PCAP touchscreen; pre-installed Edgecross Basic Software, SLMP Data Collector and GT SoftGOT2000. Supporting official specification document: https://us.mitsubishielectric.com/fa/en/support/technical-support/knowledge-base/getdocument/?docid=3E26SJWH3ZZR-38-2999. Main product image and interface detail were localized to RoboInd media storage. |
