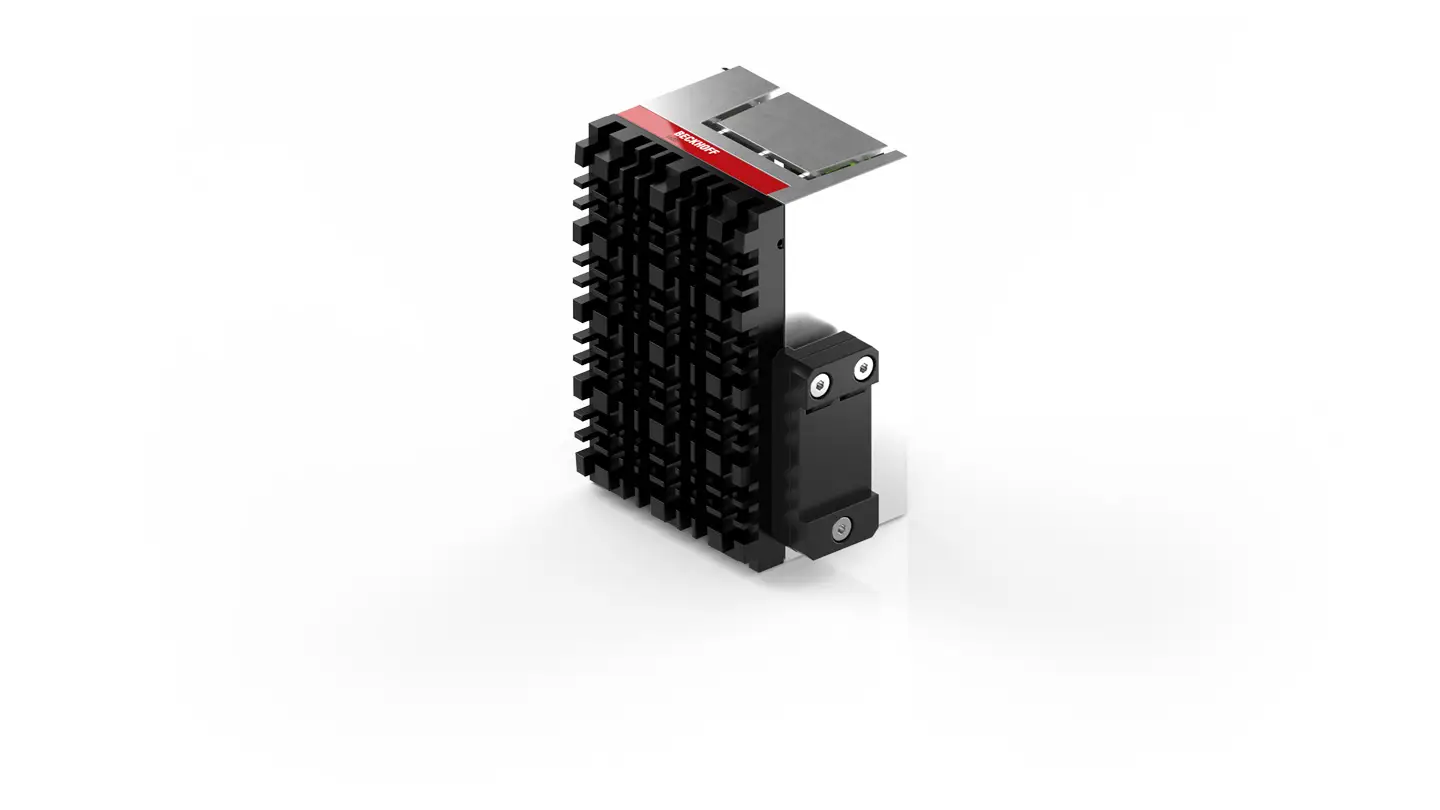

Fanless ultra-compact industrial PC for control-cabinet automation, IoT gateway and edge-computing applications. Official product photography includes the front/interface and rear views.
Specifications
| Controller type | IPC |
|---|---|
| CPU model | Intel Celeron 6305E, 1.8 GHz, 2 cores; options up to Intel Core i7-1185G7E, 1.8 GHz, 4 cores |
| Memory | 8 GB DDR4 RAM; up to 16 GB ex factory |
| Storage | 40 GB M.2 SSD; options up to 640 GB |
| Product model | C6027-0010 |
| Operating system | Windows 10 IoT Enterprise 2021 LTSC; Windows 11 IoT Enterprise 2024 LTSC; TwinCAT/BSD; Beckhoff RT Linux |
| Protection rating | IP20 |
| Dimensions (W × H × D) | 82 × 127 × 69 mm (without mounting plate) |
| Operating temperature | 0 to 50 °C |
| Expansion interfaces | 2 onboard 100/1000/2500BASE-T Ethernet plus 1 onboard 100/1000BASE-T; 4 USB 3.2 Gen. 2; 1 DisplayPort; 1 M.2 SSD slot; optional 6-port Ethernet extension |
| Power supply | 24 V DC |
| Technical extension | Fanless passive cooling with single side cooling plate; aluminum zinc die-cast housing; rear-wall, side-wall or DIN-rail mounting; optional internal 1-second UPS. TwinCAT/EtherCAT compatibility. Official source lists a 5 cm free-air circulation clearance at top and bottom. |
