Compact AI collaborative robot with integrated vision, 746 mm reach, 6 kg payload and 22 kg arm weight. The official product page describes collision detection, emergency-stop behavior, configurable speed limits and hand-guiding position teaching.
Specifications
| Product model | TM5-700 |
|---|---|
| Reach | 746 mm |
| Payload | 6 kg |
| Robot arm weight | 22 kg (current product page value) |
| IP classification | IP54 |
| Hand guiding | yes |
| Safety functions | Collision detection; emergency stop |
| Collaborative mode | Hand guiding; collision detection; configurable speed limits |
| Standards referenced by manufacturer | ISO 10218-1:2011|ISO/TS 15066:2016 |

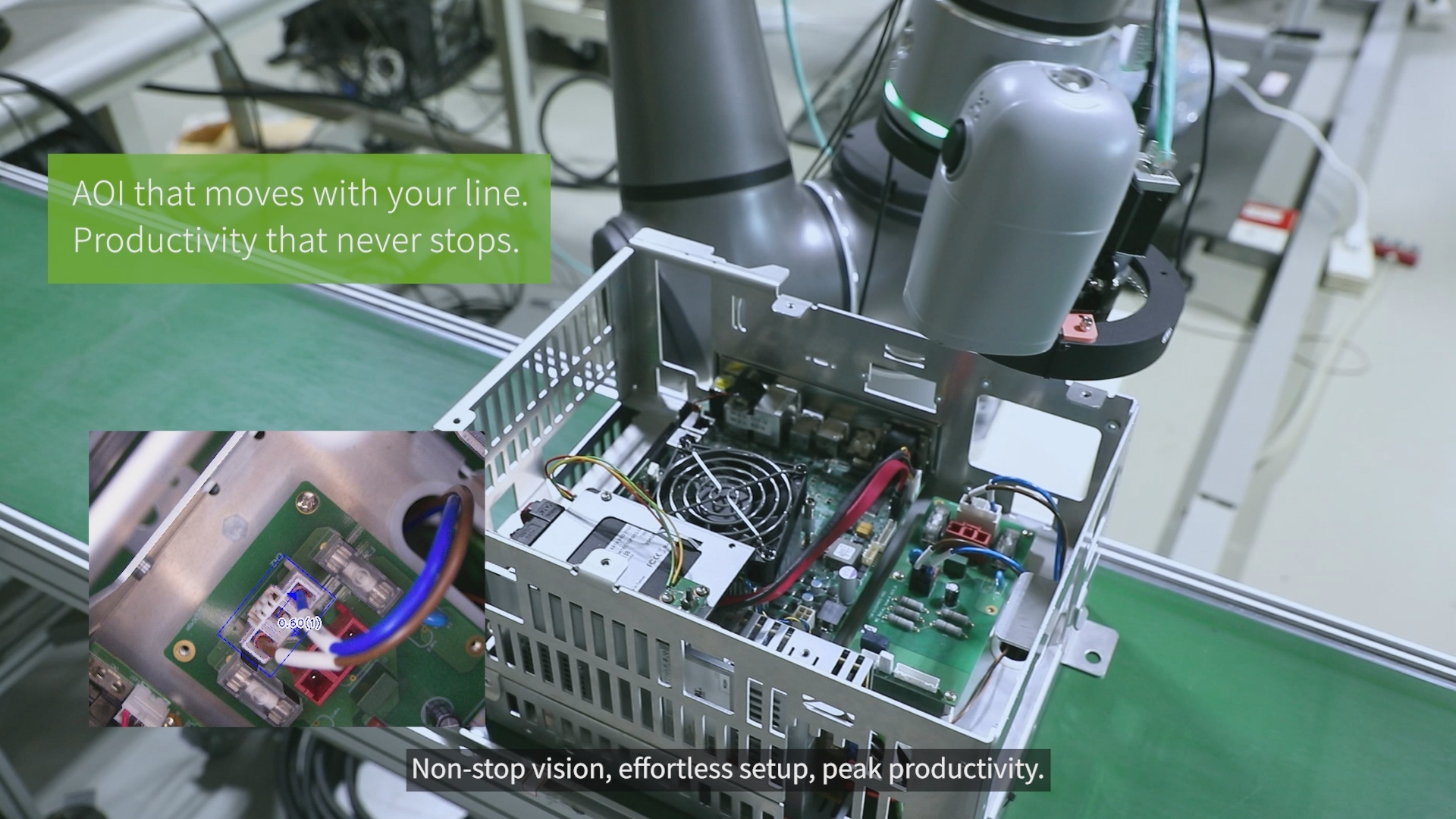

| Technical extension | Integrated vision system for optical inspection, part recognition and pick-and-place; TMflow graphical, process-oriented programming interface. The official page says speed limits can be set in collaborative workspaces. |
