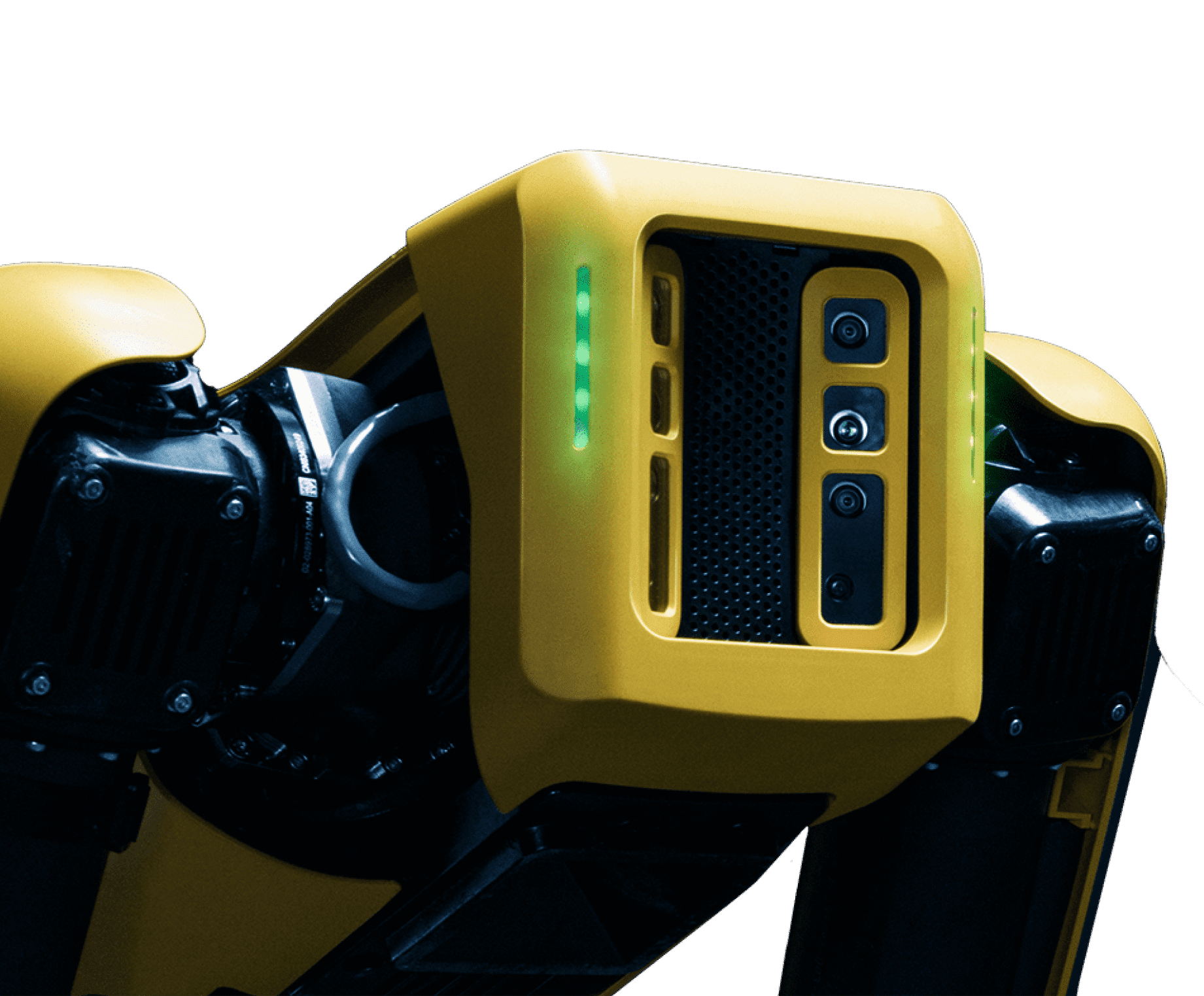

Spot is Boston Dynamics’ agile mobile quadruped robot for industrial sensing, inspection, and remote exploration. It supports autonomous missions, dynamic replanning around obstacles, autonomous charging, and a modular payload interface for sensors and application hardware. The robot is designed for indoor and outdoor industrial environments.
Official product page: https://bostondynamics.com/products/spot
Official technical source: https://bostondynamics.com/wp-content/uploads/2020/10/spot-specifications.pdf
Manufacturer category: Spot mobile robot / quadruped robot
Specifications
| Legged structure | quadruped |
|---|---|
| Robot weight | 33.8 kg (with battery) |
| Rated payload | 14 kg |
| Maximum speed | 1.6 m/s |
| Maximum obstacle height | 300 mm |
| Maximum slope | ±30° |
| Runtime | 90 min average |
| Ingress protection | IP54 |
| Communication protocol | WiFi |
| Dimensions | Length 1100 mm; width 500 mm; sitting height 191 mm; walking height 520–700 mm |
| Operating temperature | −20 to 55 °C |

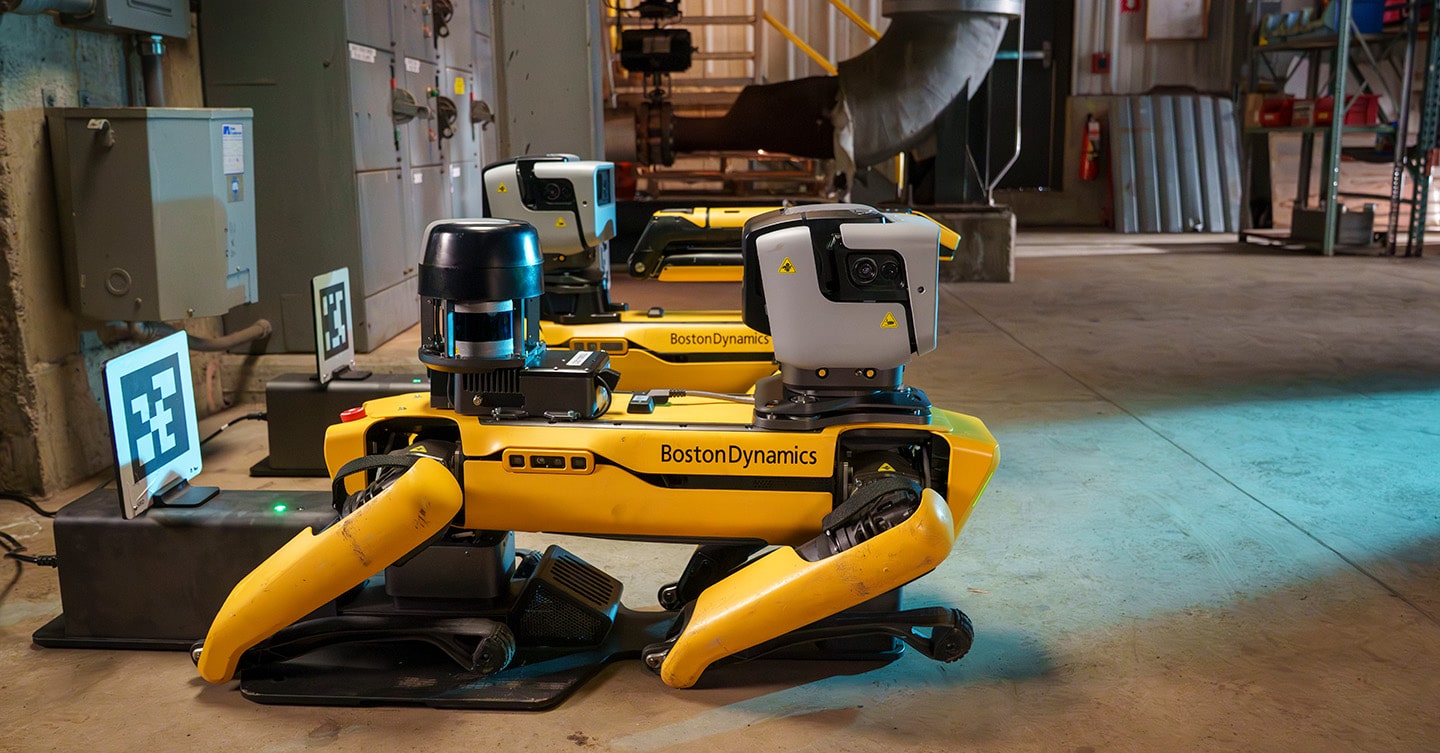

| Technical extension parameters | Battery 564 Wh; standby 180 min; recharge 60 min; terrain sensing 360° horizontal field of view, 4 m range, >2 lux; WiFi 2.4/5 GHz b/g/n and Ethernet; payload interface DB25 (2 ports), unregulated DC 35–58.8 V, 150 W per port; autonomous docking/charging; source page lists collision avoidance and self-righting. |
