DENSO WAVE's compact VP family includes the 5-axis VP-5243 and 6-axis VP-6242 for confined installation spaces. Payload, reach and motion details below are stated per model; observe the manufacturer's wrist-angle payload limits.

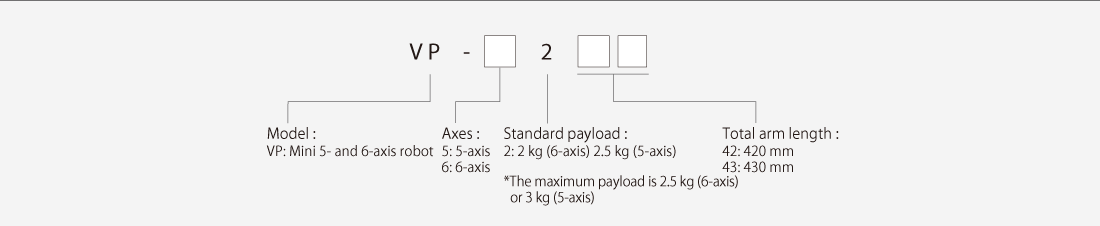

Specifications
| Product model | VP-5243 (5-axis) / VP-6242 (6-axis) |
|---|---|
| Robot structure | 5-axis / 6-axis vertical articulated robot |
| Number of axes | 5 (VP-5243) / 6 (VP-6242) |
| Rated payload | 3 kg VP-5243 / 2.5 kg VP-6242 (maximum; wrist-angle caveats apply) |
| Maximum reach | 430 mm VP-5243 / 432 mm VP-6242 |
| Repeatability | ±0.02 mm (manufacturer specification) |
| Typical cycle time | 0.99 s (VP-5243; 1 kg payload, specified path) |
| Mounting | Floor or ceiling suspended |
| Controller model | RC8 |
| Dimensions | 160 × 160 mm footprint |
| Weight | Approx. 13 kg VP-5243 / 15 kg VP-6242 |
| Joint motion range | J1 ±160°; J2 ±120°; J3 +136°/−128° (5-axis) or +160°/+19° (6-axis); J4 absent (5-axis) or ±160° (6-axis); J5 ±120°; J6 ±360° (6-axis) |
Technical extensions
Absolute encoder; AC servo motors and brakes on all joints; 4 tool-air lines (φ4×4) and 9 user signal wires. Air pressure 0.10–0.39 MPa operating, 0.49 MPa maximum. VP-5243 maximum composite speed is 3,900 mm/s. Maximum payload depends on wrist orientation: beyond ±45° from downward vertical, VP-5243 is limited to 2.5 kg and VP-6242 to 2.0 kg.
