Six-axis collaborative robot combining 12 kg payload with 1,304 mm radius and ±0.05 mm repeatability for industrial automation.
Selector specifications
| 产品型号 | CS612 |
|---|---|
| 自由度 | 6 |
| 防护等级 | IP65 |

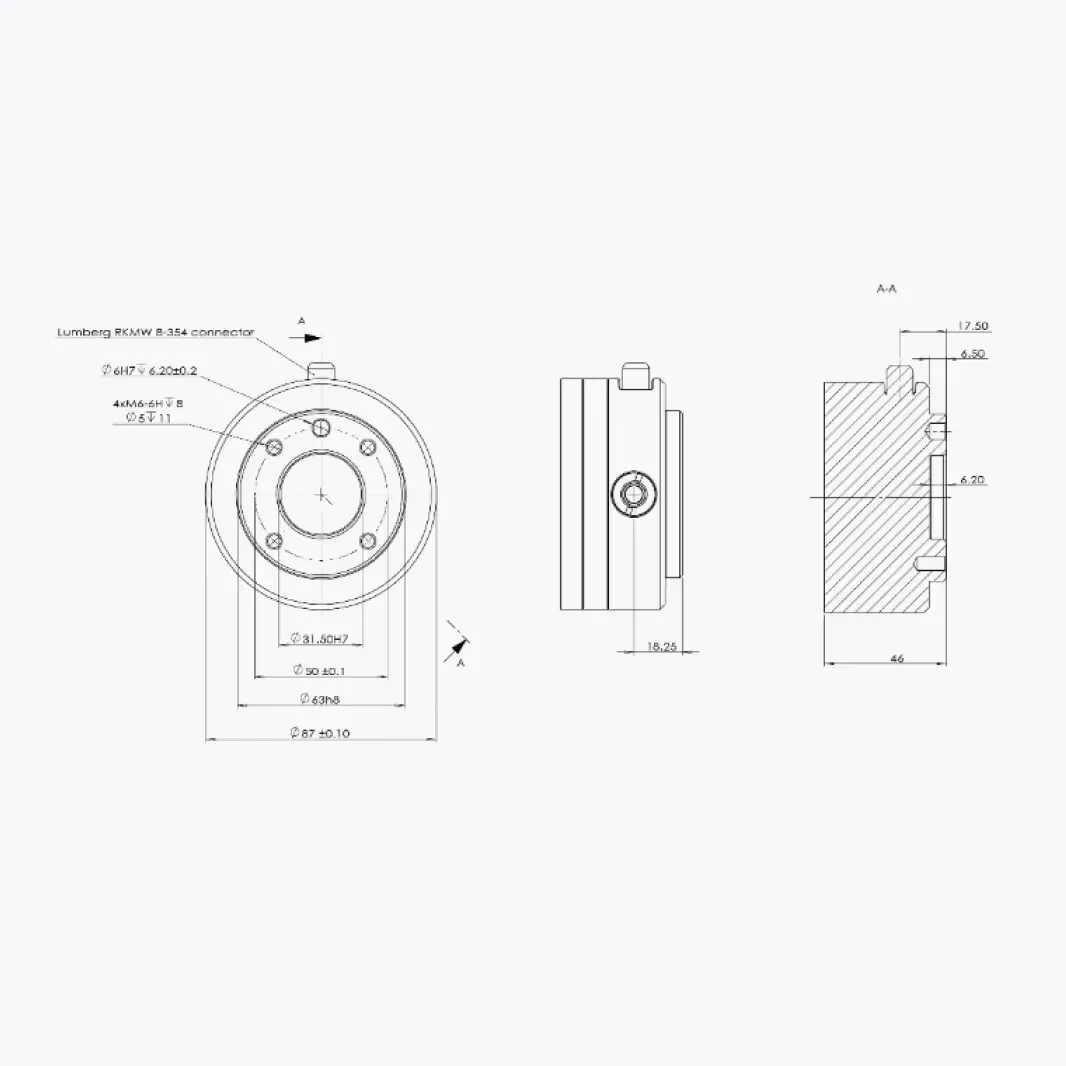

| 技术扩展参数 | Model CS612; tool I/O: M8, 8-pin; 4 configurable DI, 4 configurable DO, 1 AI, 1 AO |
| 通信协议 | RS485, Modbus RTU; Ethernet TCP/IP; EtherNet/IP and PROFINET slave |
| 工作温度 | -10~50 °C |
| 重量 | 34 kg |
| 重复定位精度 | ±0.05 mm |
| 工作半径 | 1304 mm |
| 额定负载 | 12 kg |
Technical extensions

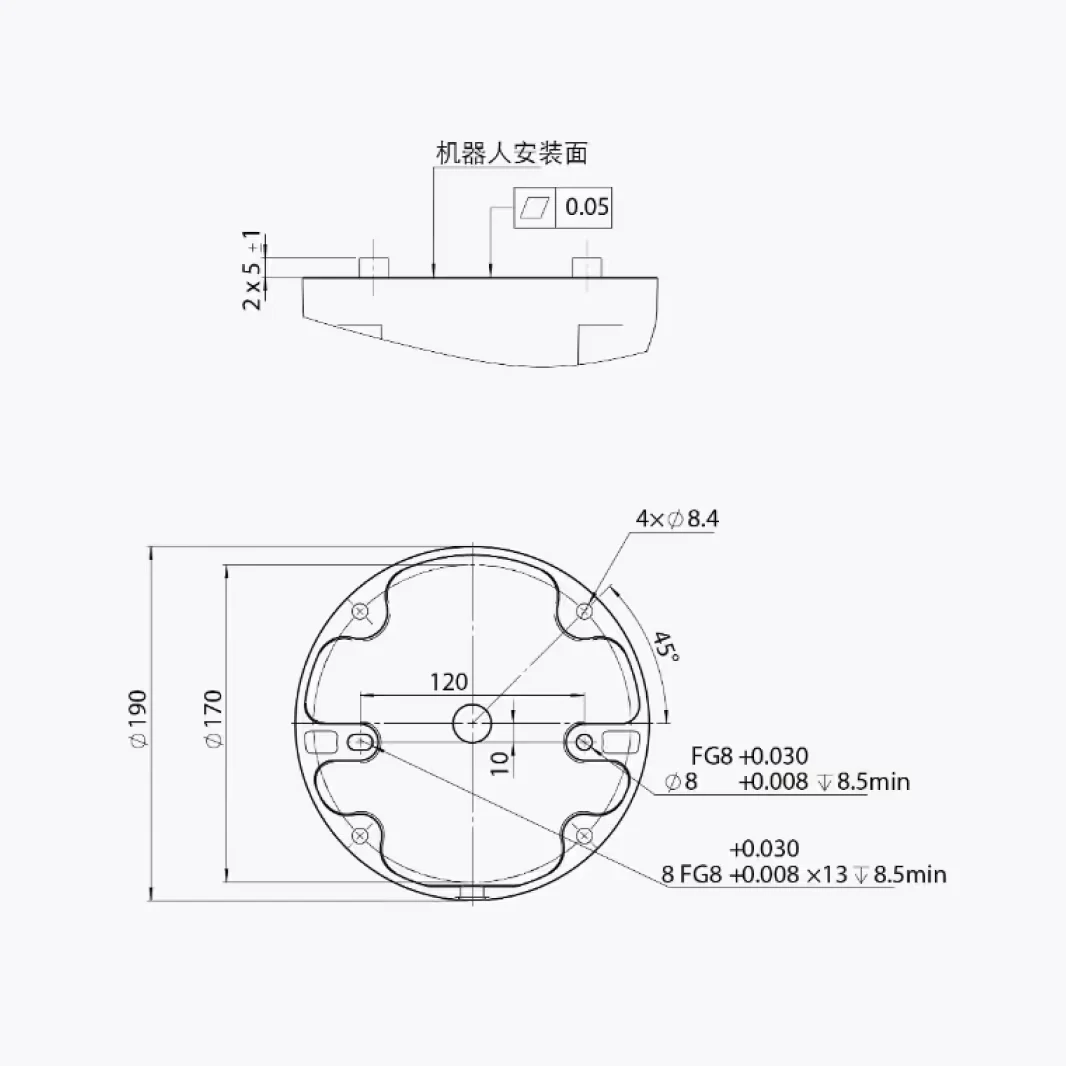

Typical TCP speed 3.4 m/s; footprint Ø190 mm; weight 34 kg; typical power use 435 W; temperature range −10 to 50 °C; optional IP68. Source: https://www.eliterobots.com/cobots/cs612
