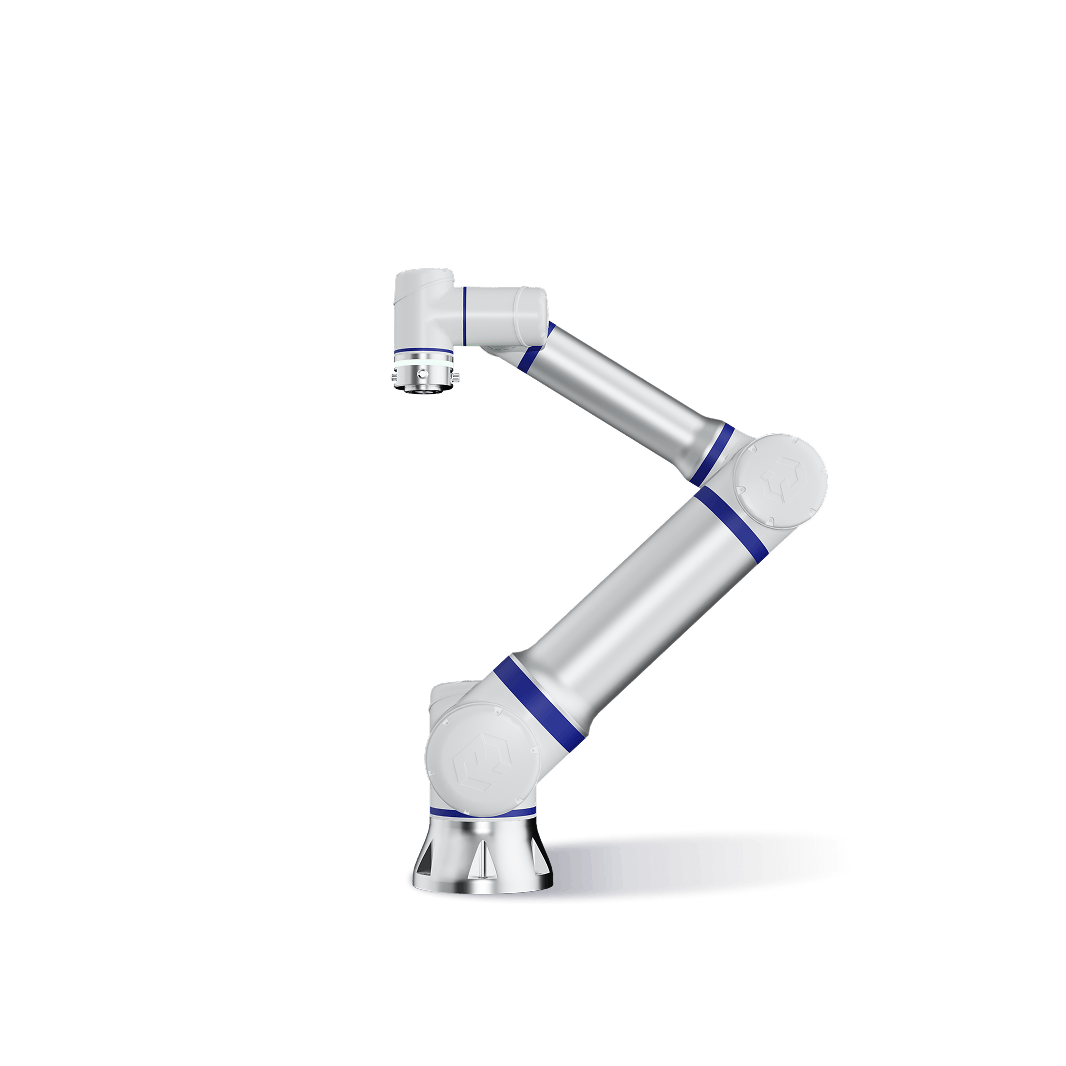

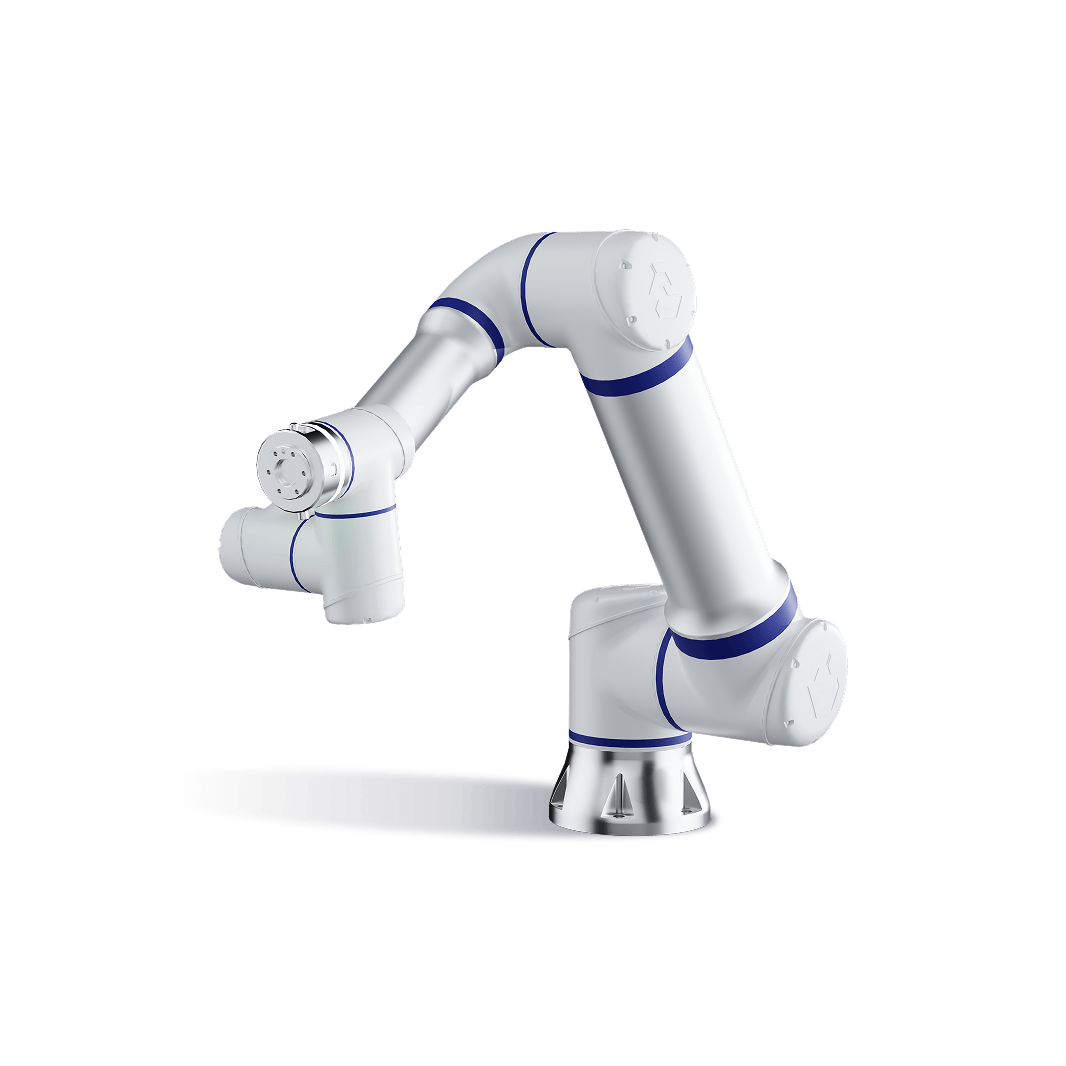

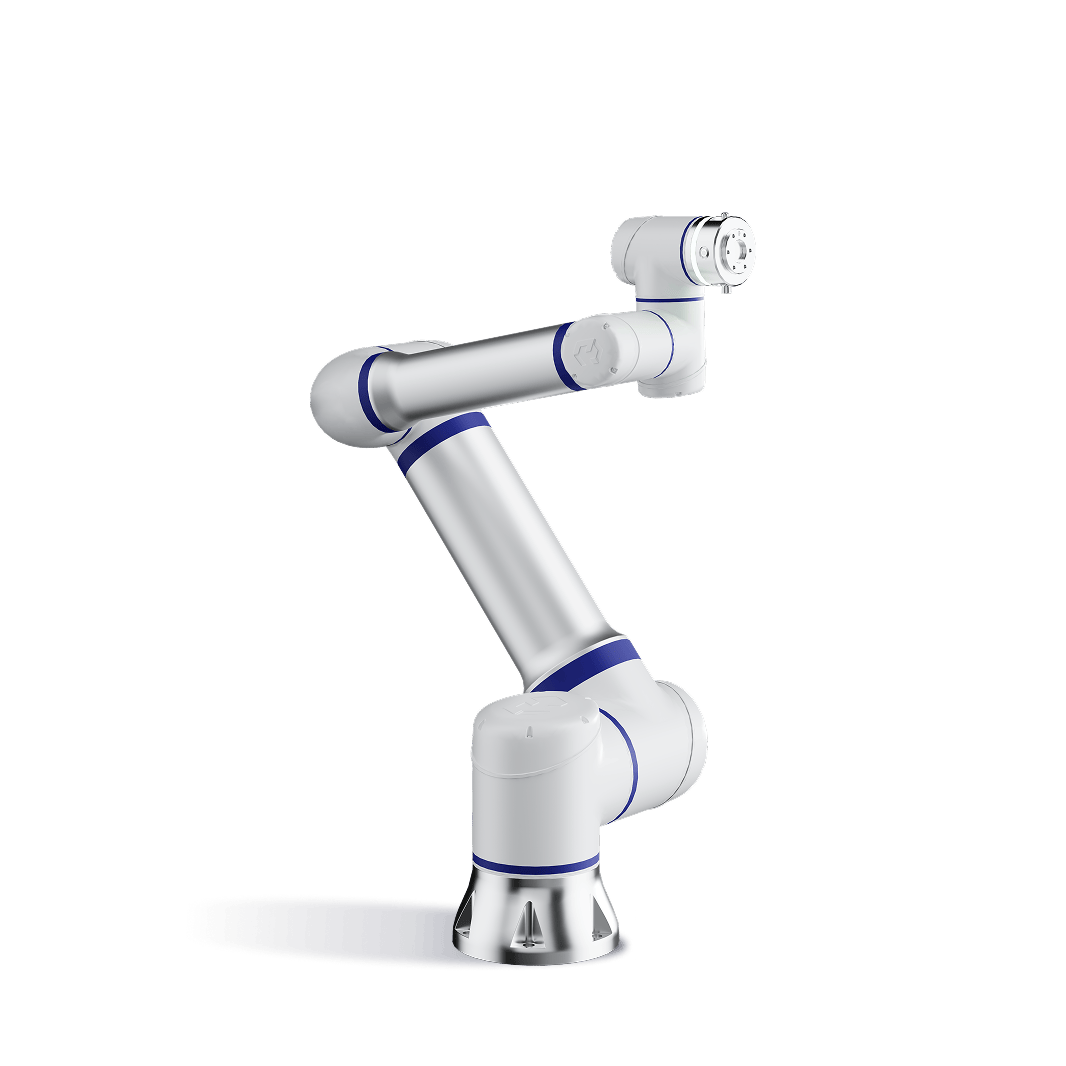

ELITE ROBOT CS630 Collaborative Robot

同类商品供给服务采购需求价格行情相关图库

单价

面议

对比

询价暂无

发货江苏苏州市

品牌ELITE ROBOT

过期长期有效

更新2026-10-15 02:40

发送询价

详细说明

规格参数

Product specifications · 按产品分类标准字段展示

中英文标准字段

自由度
Degrees of freedom

额定负载
Rated payload

30 kg

工作半径
Reach

1300 mm

重复定位精度
Repeatability

±0.05 mm

TCP最大速度
Maximum TCP speed

2 m/s (manufacturer page TCP figure)

产品型号
Product model

CS630

安装姿态
Installation orientation

floor|wall|ceiling

防护等级
Ingress protection

IP65

通信协议
Communication protocol

PROFINET|EtherNet/IP|Modbus TCP

重量
Weight

58 kg

工作温度
Operating temperature

-10 to 50 °C

认证
Certification

ISO_10218|ISO_TS_15066|RoHS|CE|UL

关节速度
Joint speed

Base/shoulder/elbow: 125°/s; joints 1–3: 180°/s

工具端I/O
Tool I/O

4 DO, 4 DI, 1 AI, 1 AO (configurable)

技术扩展参数
Technical extension parameters

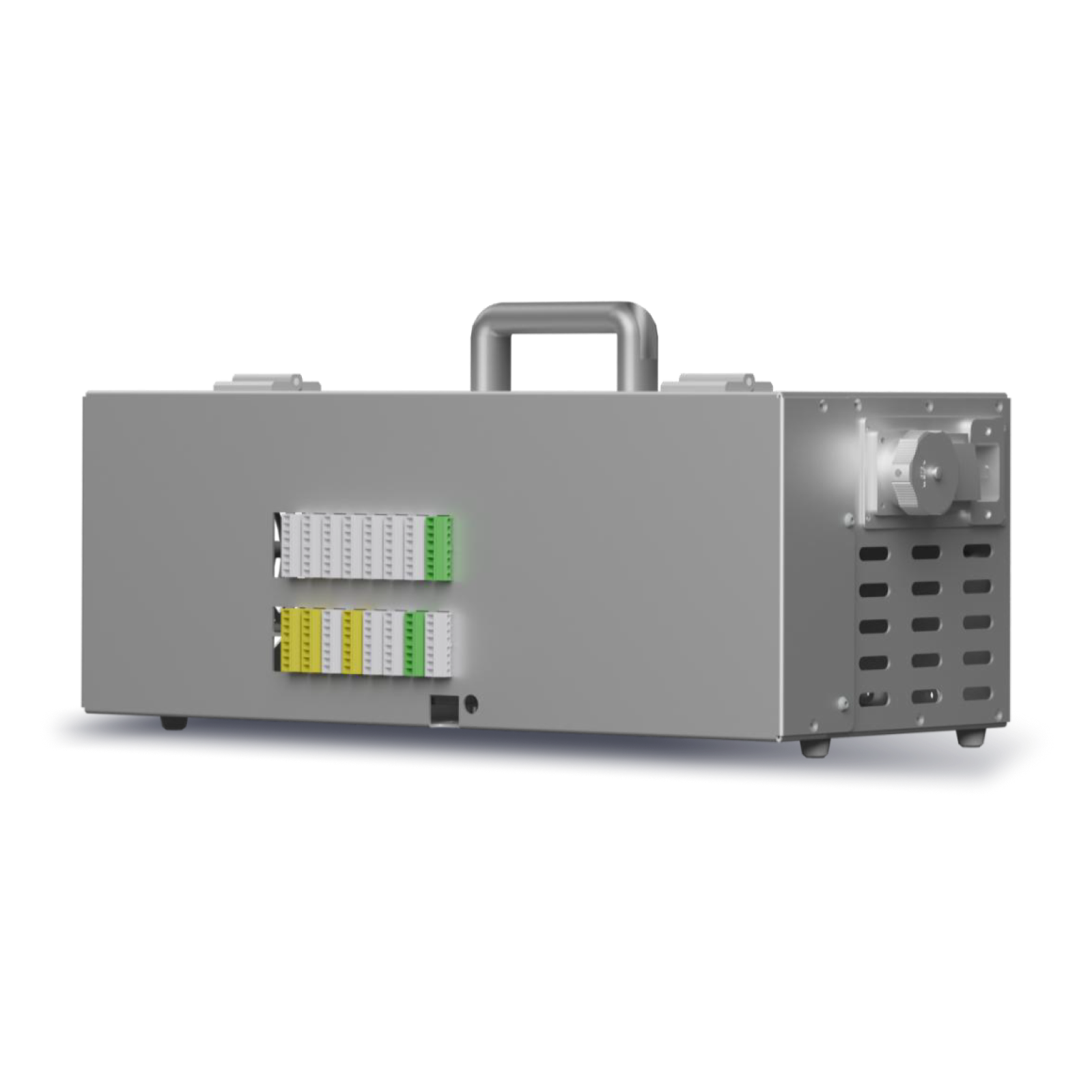

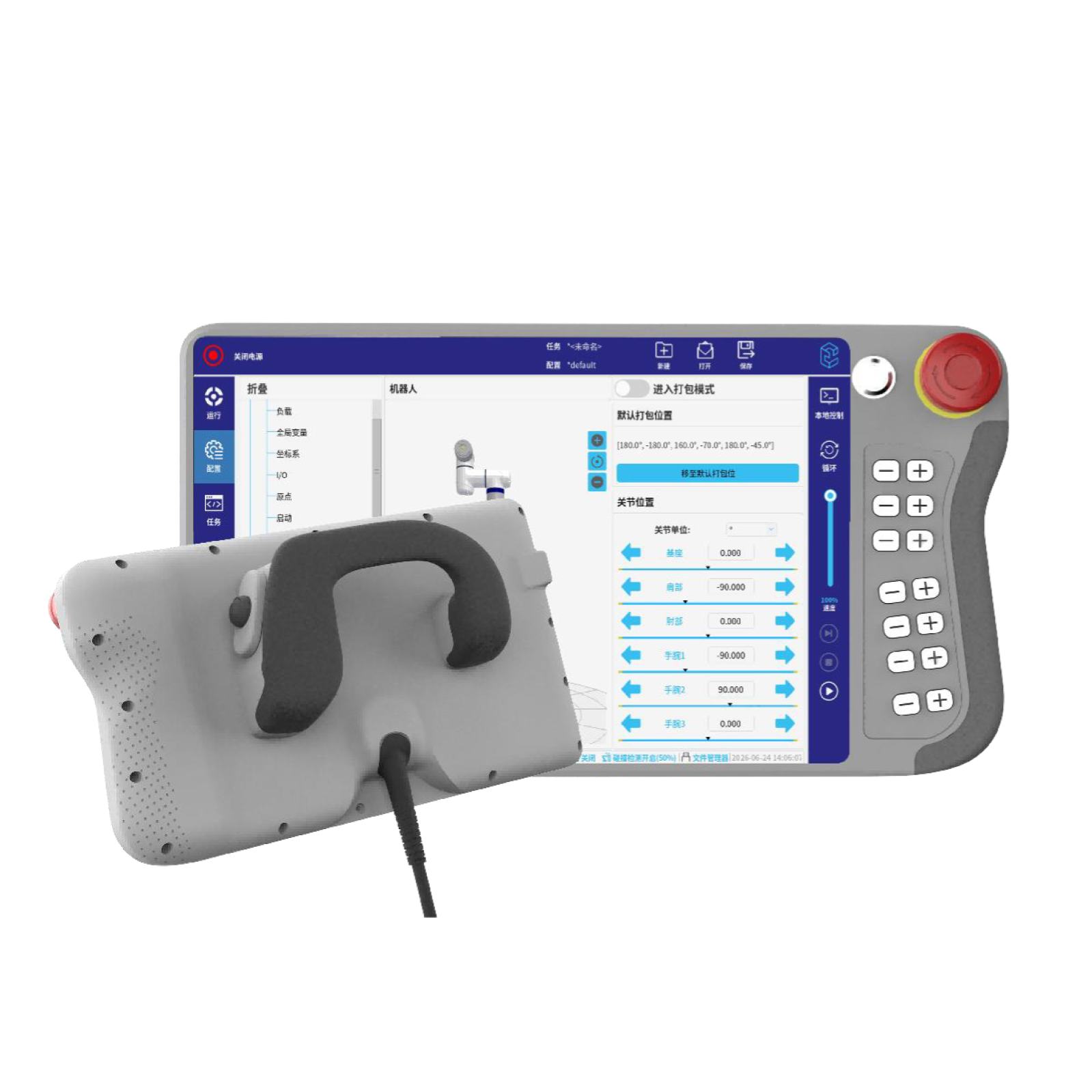

Typical power consumption 625 W. Tool I/O power: Port 1 12/24 V with current depending on pin mode (up to 3 A); Port 2 24 V, 5 A. Controller standard AC: dimensions 505 × 257 × 447 mm, IP44, 15 kg; optional OEM AC/DC controllers differ in dimensions, weight and IP20 rating. Optional robot IP68 versions are available; IP65 is standard. The controller supports Ethernet, PROFINET, EtherNet/IP, FINS TCP, Modbus TCP/RTU and optional CC-Link; tool communication is RS485 with CAN reserved. The official series page describes 27 safety functions SF01-SF27, PL d, Category 3, graphical programming UI and expandable SDK. Teach pendant ERP500: 10.1-inch, 1280 × 800 display, IP54, 0.96 kg; ERP500S optionally adds a 3-position enabling switch.

技术扩展参数 · Technical extension

产品型号
Product model

CS630

额定负载
Payload

30 kg

工作半径
Working radius

1300 mm

重复定位精度
Repeatability

±0.05 mm

重量
Robot net weight

58 kg

工作温度
Operating temperature

-10 to 50 °C

通信协议
Communication protocol

PROFINET|EtherNet/IP|Modbus TCP

认证
Certifications

ISO_10218|ISO_TS_15066|RoHS|CE|UL

技术扩展参数
Technical extension

自由度
Degrees of freedom

TCP最大速度
TCP speed

2 m/s (manufacturer page TCP figure)

防护等级
Protection rating

IP65

关节速度
joint_speed_deg_s

Base/shoulder/elbow: 125°/s; joints 1–3: 180°/s

安装姿态
Installation orientation

floor|wall|ceiling

工具端I/O
Tool I/O

4 DO, 4 DI, 1 AI, 1 AO (configurable)

Six-axis collaborative robot for heavy-duty material handling, inspection, machine tending, dispensing and processing.

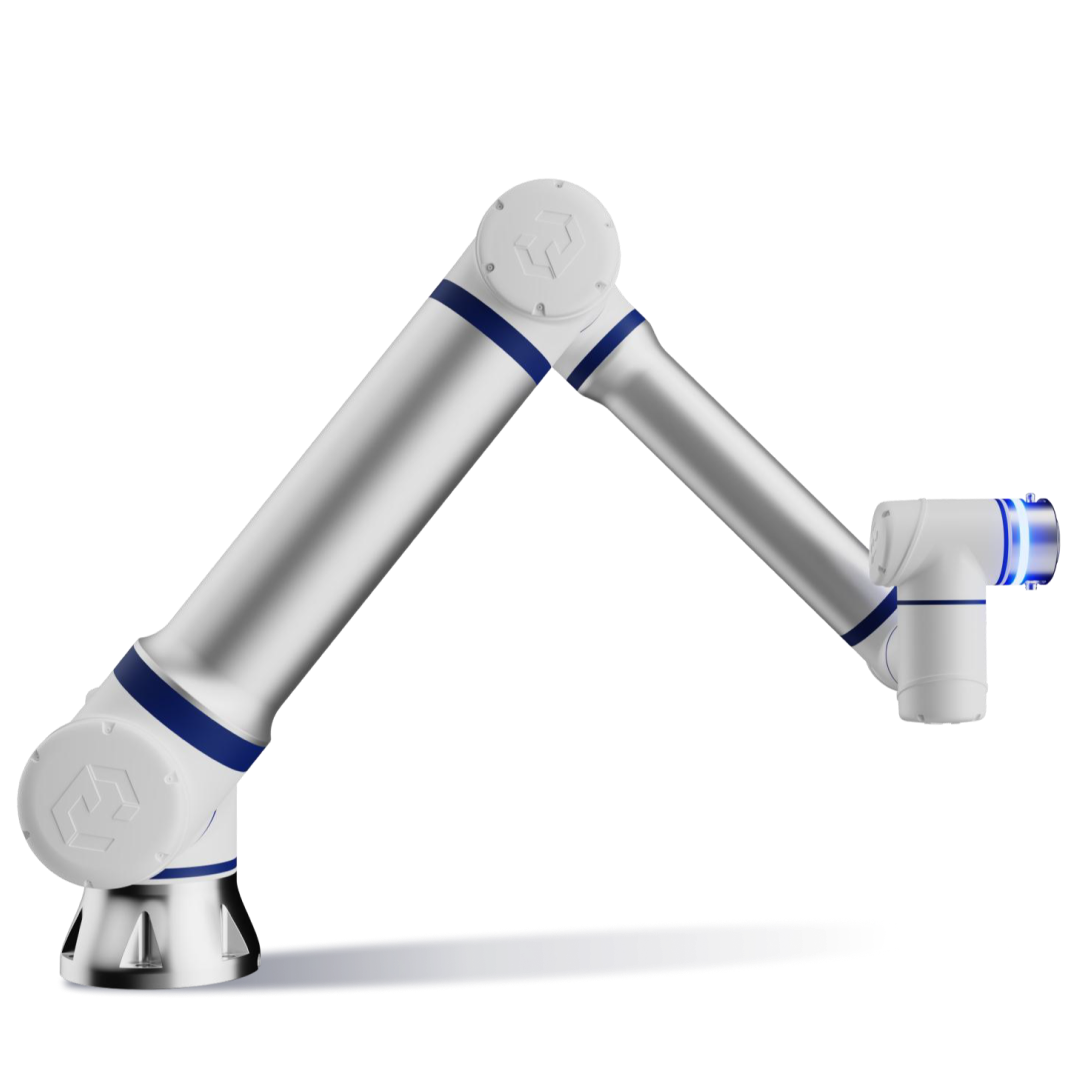

Specifications

Product model	CS630
Payload	30 kg
Working radius	1300 mm
Repeatability	±0.05 mm
Net weight	58 kg
Operating temperature	-10 to 50 °C
Tool communication	RS485, CAN (reserved)
Certifications	ISO 10218-1, ISO 13849, ISO/TS 15066, RoHS, CE, UL, SEMI, ISO Class 5 Cleanroom
Technical extension parameters	Tool I/O: 4 DO, 4 DI, 1 AI, 1 AO; tool power up to 24 V / 5 A; mounting orientation any angle; standard controller Ethernet, PROFINET, EtherNet/IP and Modbus TCP/RTU
